Oriental Rubber Industries cut protection belts

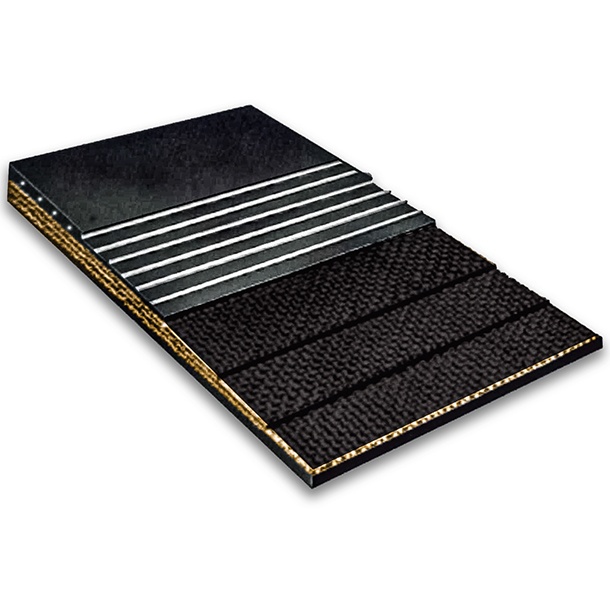

CARCASS – CUT PROTECTION BELTS

Superb Longitudinal cut resistance
against metal, tramp and sharp objects

The MAXX SHIELD® belt is designed to prevent belt failure due to entrapment of tramp material, which is often the cause of longitudinal rip of belts. The loss due to such breakdowns is very high considering that the entire length of belt needs to be replaced. Such failures cause huge production losses and downtime.
Use the MAXX SHIELD® belts and turn your WASTE TO GOLD

SEND AN ENQUIRY DOWNLOAD PDF

Perfect for following Industries:
Recycling
Scrap
Glass

Benefits of MAXX SHIELD® Belts:

Product Application:

  • Installations having a history of frequent belt failures attributed to longitudinal cut
  • Scrap recycling plants
  • Cullet / broken glass processing
  • High speed feeder, transfer and unloader belts
  • Incline, chevron belts for waste and rock handling
  • Mobile crushers, concrete demolition plants

Product Characteristics:

Common Widths : 600 mm to 2000 mm (24” to 80”) for EP/NN | 800 mm to 2400 mm (32″ to 94″) for ST
Carcass Variety Available : EP / NN, MAXX ROCK®, MAXX ARMOUR®, MAXX STEELFLEX®
Common Belt Rating : 500 to 3150 kN/m (270 PIW to 1800 PIW) | ST500 to ST5400 kN/m (270 to 3000 PIW)
No. of Plies : 1 to 4 ply
Rubber Cover Compounds : M24, DIN W, DIN X, High Abrasion Resistant (HAR), Super Abrasion Resistant (SAR) and other grades as per request
Rubber Cover Thickness : 1.5 mm to 25 mm (1/16” to 1”)
Edge : Moulded
Splicing Method : Hot/ Cold/ Mechanical
Belt Identification : Unique Product Identification Number (PIN) at every 10 Mtr (33’)
