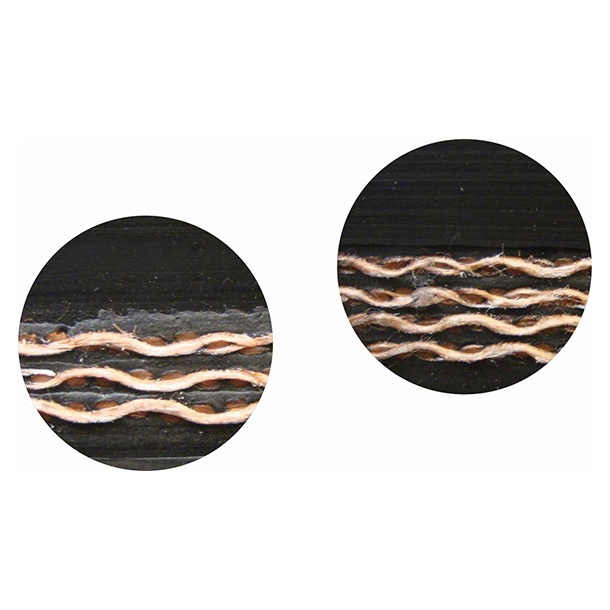

Oriental’s MAXX IMPACT® belt is specially designed to withstand the abusive loading condition. A composite design approach covering the unique fabric carcass, cushion rubber inter-plies and the cover grade result in a product which is truly a “problem solver” in high impact areas.
High Tear Resistance of belt up to 2.5 times higher than conventional EP / NN belt constructions.
High impact absorption capability allows abusive loading where conventional belts fail.
Mines handling big boulders | Primary crushers | Conveyors with high fall height | Conveyors with inadequate load support
| Common Widths : | 600 mm to 2600 mm (24” to 102”) |
| Carcass Variety Available : | Maxx Impact® Polyester/Nylon (EP) |
| Common Belt Rating : | 500/2, 630/3, 800/3, 800/4,1000/3,1000/4,1250/3,1400/4 1600/4 kN/m (270 PIW to 1000 PIW) |
| No. of Plies : | 2 ply to 4 ply |
| Rubber Cover Compounds : | M24, DIN W, DIN X, High Abrasion Resistant (HAR), Super Abrasion Resistant(SAR) and other grades as per request. |
| Rubber Cover Thickness : | 1.5 mm to 25 mm (1/16” to 1”) |
| Edge : | Cut/Moulded Edge |
| Splicing Method : | Hot/ Cold/ Mechanical |
| Belt Identification : | Unique Product Identification Number (PIN) at every 10 Mtr (33’) |
