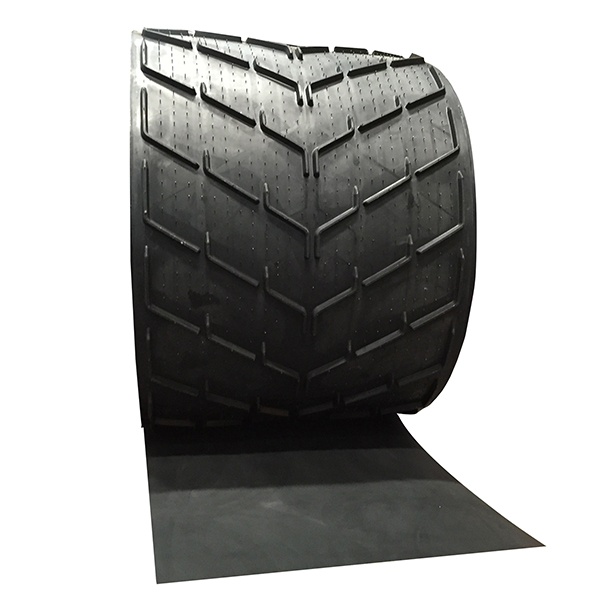

In conveyor systems having incline angles greater than 18 degrees, the material tends to roll back. With our experience in tackling problems related to high inclines, we have developed a diverse range of Chevron and other profile belts. Our range of MAXX ELEV® conveyor belts are guaranteed to improve operational efficiency and throughput of material conveyed.
Profiled covers reduce roll back of material on inclines
Space saving due to smaller footprint
Increases carrying capacity
Savings in structural cost and power consumption
Reduces spillage and material loss
Flexible belt construction wraps around smaller pulleys
Available with special covers including Oil, Heat or Fire Resistant
Carcass rating and types include MAXX ROCK® or MAXX SHIELD® for enhanced rip resistance
Mobile Crushers including mobile for stone aggregate handling, limestone conveying in cement plants, scrap handling, wood chips.
| Common Widths : | 300 mm to 2000 mm (12″ to 80″). Refer table for details |
| Carcass Variety Available : | EP/Available with MAXX SHIELD® |
| Common Belt Rating : | 200 to 1000 kN/m (110 to 550 PIW) |
| No. of Plies : | 2 ply to 4 ply |
| Rubber Cover Compounds : | M24, DIN X, DIN Y, HAR, SAR, HR, OR (Other grades are also available on request) |
| Rubber Cover Thickness : | 3 mm (Top) & 1.5 mm (Bottom) or Bare Back | 1/8″ (Top) & 1/16″ (Bottom) or Bare Back |
| Edge : | Moulded Edge preferred, Cut Edge available on request |
| Splicing Method : | Hot splice/Cold splice / Mechanical splice |
| Packing Available in : | Single Roll |
| Belt Identification : | Unique Product Identification Number (PIN) at every 10 Mtr (33’) |
