Impact Bars are installed under the belt to provide support to the entire loading area and reduce the damage to the belt by absorbing the impact caused during loading. It also reduces the damage caused by material landing between the idlers.
Enhances life of conveyor belt
Exceptional Wear and Impact resistance
Reduces spillage and provides better work environment
Faster and easy to install / replace with the help of bolt mounting system
Lowers maintenance cost due to stationary parts

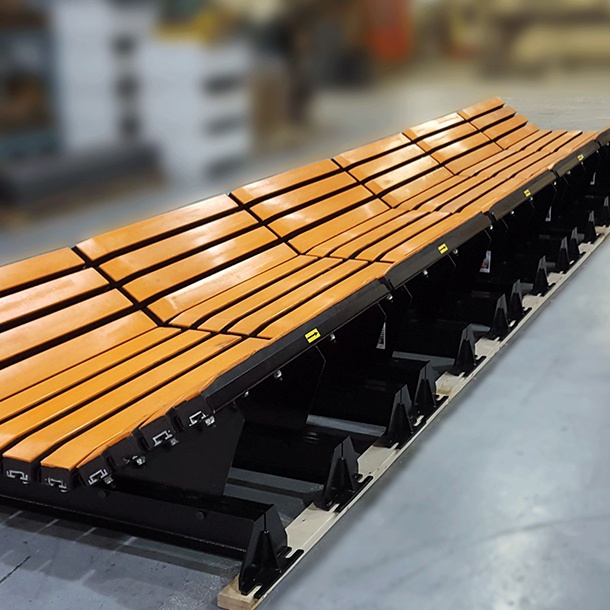

MAXX ORB® bars are installed as a cradle in the loading area under the belt to form an antifriction slider bed covering the entire width of the belt. In traditional roller type assemblies, often the belt suffers impact damage due to material landing on unsupported spaces between the idlers. Since the bed rests stationary and has no moving parts, the associated problems of routine maintenance, as in the case of impact idler rollers, are also eliminated.
| Width of Impact Bar: | 100 mm |
| Height of Impact Bar : | 50 and 75 mm |
| Length of Impact Bar : | 1200mm & 1500mm standard; other lengths on request |
| Colour of PE Covers : | Blue, Orange, Green & Red Standard |
| Edge : | With or without Ramp |
| Packing Available in : | On pallets |
