ORIENTAL’s uniquely designed Repair strips and Repair patches provide an useful and handy for belt maintenance. If there is any localized damage due to puncture or gouge or longitudinal cut/ rip of conveyor covers, on conveyor -, Repair patches or Repair Strip will offer quick repair on belt and thereby make the belt operational with in a few hours. It is most economical and durable solution to repair on a damaged conveyor belt.
MAXX REPAIR™ is a quick fix solution to cracks or punctures which occur on a conveyor belt or rubber sheets. Oriental MAXX REPAIR™ comes with inherent bonding layer which helps in quick and easy application process.
| Repair Strip: | |
| Standard Widths are : | 50 mm, 75 mm, 100 mm, 150 mm, 200 mm, 220mm, 300 mm, 400 mm |
| Standard Widths are : | 50 mm, 75 mm, 100 mm, 150 mm, 200 mm, 220mm, 300 mm, 400 mm |
| Standard Length : | 10 m per roll |
| Standard Thickness : | 3.5 mm |
| Type of Strips : | With Fabric and Without Fabric |
| Bonding layer Backing : | Yes, Green Bonding layer on one side. |
| Nomenclature : | RS 50 F ( stands for Repair Strip having width 50 mm and it contains EP 160 one layer of fabric), RS 200 – 200 mm Repair strip with out any fabric layer in it) |

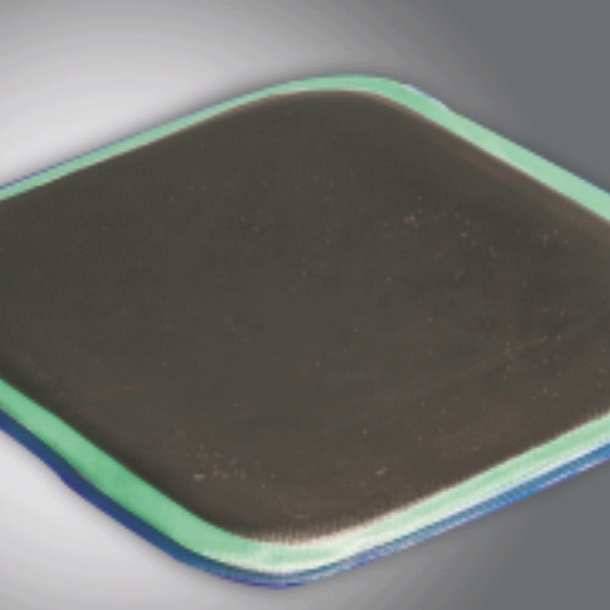

| Repair Patch: | |
| Standard Shape : | Diamond or Rhombus |
| Standard Sizes : | 100 X 240 mm; 135 X 160 mm, 200 X 260 mm; 270 X 360 mm; 300 X 500 |
| Standard Thickness : | 3.5 mm |
| Type of Patches : | With Fabric and Without Fabric |
| Bonding layer Backing : | Yes, Green Bonding layer on one side. |
| Nomenclature : | RP 100X240 F (stands for Diamond shape Repair Patch having width 100 mm and length 240 mm, it contains one layer of EP fabric), RP 200 X 260 – ( Width 200 mm, length 260 mm Repair patch with out any fabric layer in it) |
