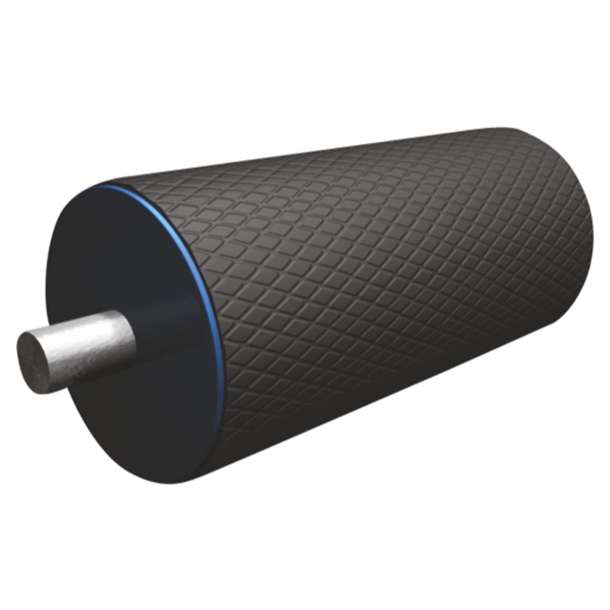

Rubber Pulley Lagging manufactured by Oriental Rubber

SHEETS – RUBBER PULLEY LAGGING

GRIP IT,
DON’T SLIP IT

MAXX GRIP® is designed to increase transmission power from the drive pulley to the belt. Slippage between a conveyor belt and a bare drive pulley causes low transmission of power due to the following reasons:

  • Low coefficient of friction
  • Acute wrap angle
  • Low pre-tension of the belt

MAXX GRIP® offers the most cost efficient way to avoid these problems. It comes with special rubber qualities for specific applications like Fire resistant lagging, Oil / Grease resistant lagging, Acid / Alkali resistant lagging, Food grade etc.

SEND AN ENQUIRY DOWNLOAD PDF

Perfect for following Industries:
Agriculture
Cement
Lumber
Mines
solar

Benefits of RUBBER PULLEY LAGGING:

Product Application:

Product Characteristics:

Properties Square (PS) Round (PR) Diamond (PD) Grooved (PG)
Profile Size (L X B X D) mm 30 X 30 X 4 10mm Dia,5mm Depth (Large) 80X50X6;(Small) 36X20X3 Width 16.0 mm, Depth 5.0 mm, Pitch 39.5 mm
Standard Colours Black Black Black, Red, Blue, White White
Min. Thickness,mm 8.0 mm 10.0 mm 8.0 mm 10.0 mm
Max. Width, mm Upto 1400 mm Upto 1500 mm Upto 2000 mm Upto 1500 mm
Standard Hardness range, Shore A 50 – 70 , +/- 5 50 – 70 , +/- 5 50 – 70 , +/- 5 50 – 70 , +/- 5
Tensile Properties of Rubber, MPa 8 -24 8 -24 8 -24 8 -24
Standard Roll Lengths* (Mtr) 10 m 10 m 10 m 10 m
