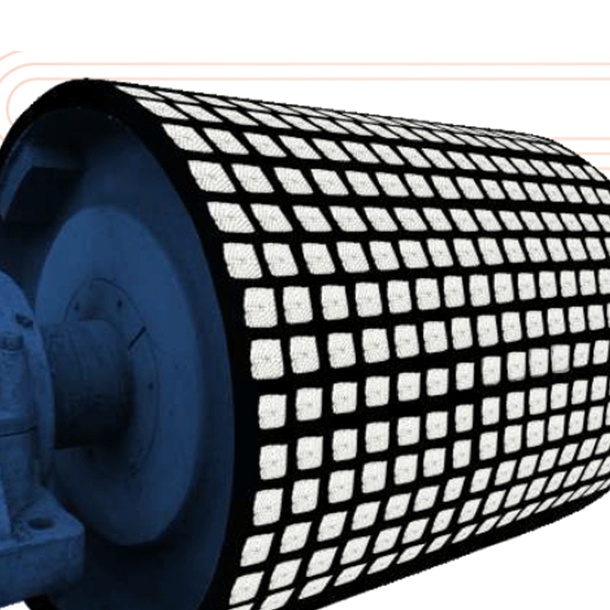

The MAXX TRAK® Ceramic lagging system’s unique design and high quality materials used in the manufacture of the product ensures continuous system operation under the most severe operating conditions where other systems fail
High Alumina ceramic tiles - Superior abrasion resistance
Large smooth diameter contact nubs - No damage to belt cover
Unique tile design and layout - Optimum contact between ceramic segments and belt
Specially designed rubber compound - Superlative bonding between ceramic segments and rubber
MAXX TRAK® with bonding layer, facilitates Cold bonding with pulleys.
MAXX TRAK® is extensively used in lagging of head pulleys and tail pulleys to give the best benefits. They are also used for lagging of bend and snub pulleys
| Name | Length (mm) | Width (mm) | Thickness* Range (mm) |
| CPL 385 | 5000 | 385 | min 12, max 25 |
| CPL 204 | 1156 | 204 | min 12, max 25 |
| CPL 318 (R) | 2200 | 318 | min 12, max 25 |
| CPL 318 (H) | 2200 | 318 | min 12, max 25 |
